Description

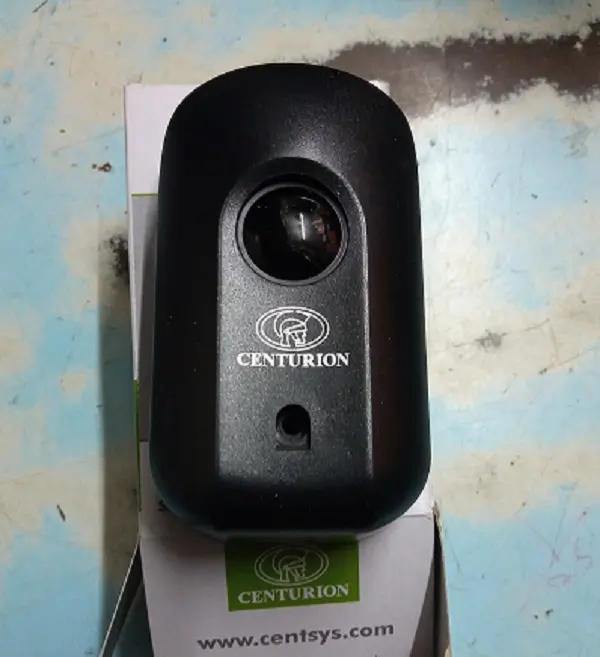

Centurion Infrared Beam Sensors
Centurion Infrared Beam Sensors are simple to align, extremely reliable and boasts an operating range of up to 40m. It can be used on gates, garage doors, and even for simple perimeter protection.
| power Supply | 12 – 24V DC/AC |
| Power Consumption Transmitter | 21mA |
| Receiver | 43mA @ 12V |
| Maximum Distance | 40m |
| Alignment | Automatic – 9m² @ 10m (parallel – circular area) |
| Output Contact Rating | 5A @ 220V AC (non-inductive) |
| Operating Temperature | -15°C to +55°C |
| Operating Humidity | 0% – 90% (non-condensing) |
| Degree of Protection | IP54 |
