KSh8,000.00 KSh8,500.00

Highlights

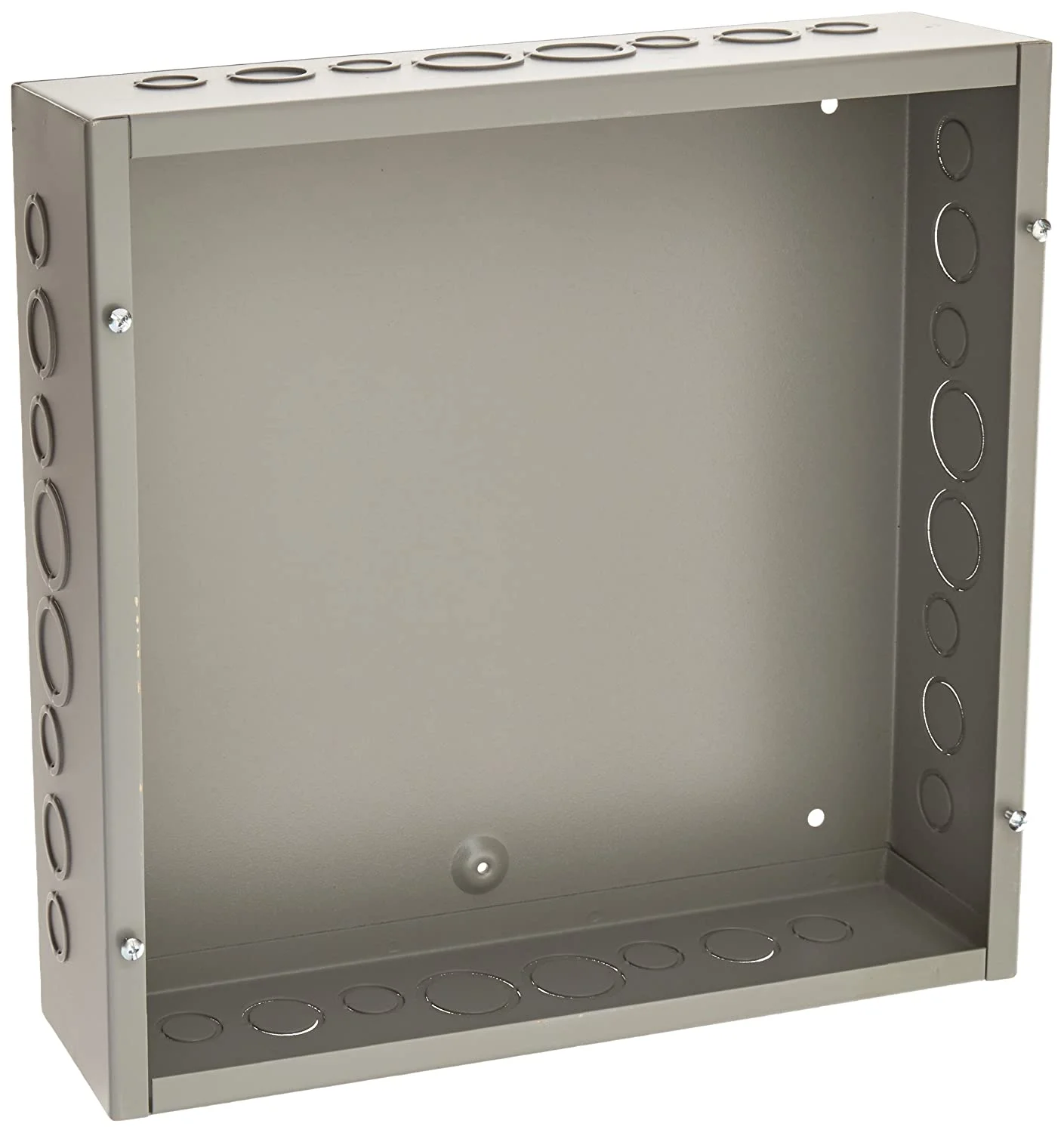

hammer box medium size
  • Unique keyhole screw slots in the cover
  • Available with or without knockouts
  • Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
  • Optional flush-mounted door frame available
  • Optional flush covers
  • Flat, removable covers fastened with plated steel screws
  • Provision for grounding
  • Mounting holes on the back of the box
  • Enclosures are finished with paint over plated surfaces

Description

hammer box medium size

  • Height: 10 in / 254 mm
  • Width: 8 in / 203 mm
  • Depth: 6 in / 152 mm
  • Protection Rating: NEMA Type 1; IP30
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Gray
  • Color Code: ANSI 61
  • Body Thickness: 16 ga / 1.52 mm
  • Door Thickness: 16 ga / 1.52 mm
  • Clip Configuration: F1, F2, F3
  • Style: Painted
  • Knockouts Included: Yes
  • Cover Screw Quantity: 4
  • Knockout Pattern Along A Sides: F-G-H-I
  • Knockout Pattern Along B Sides: F-G-H-I
  • Weight: 6.7 lb

Additional information

brand

Hammer
