Description

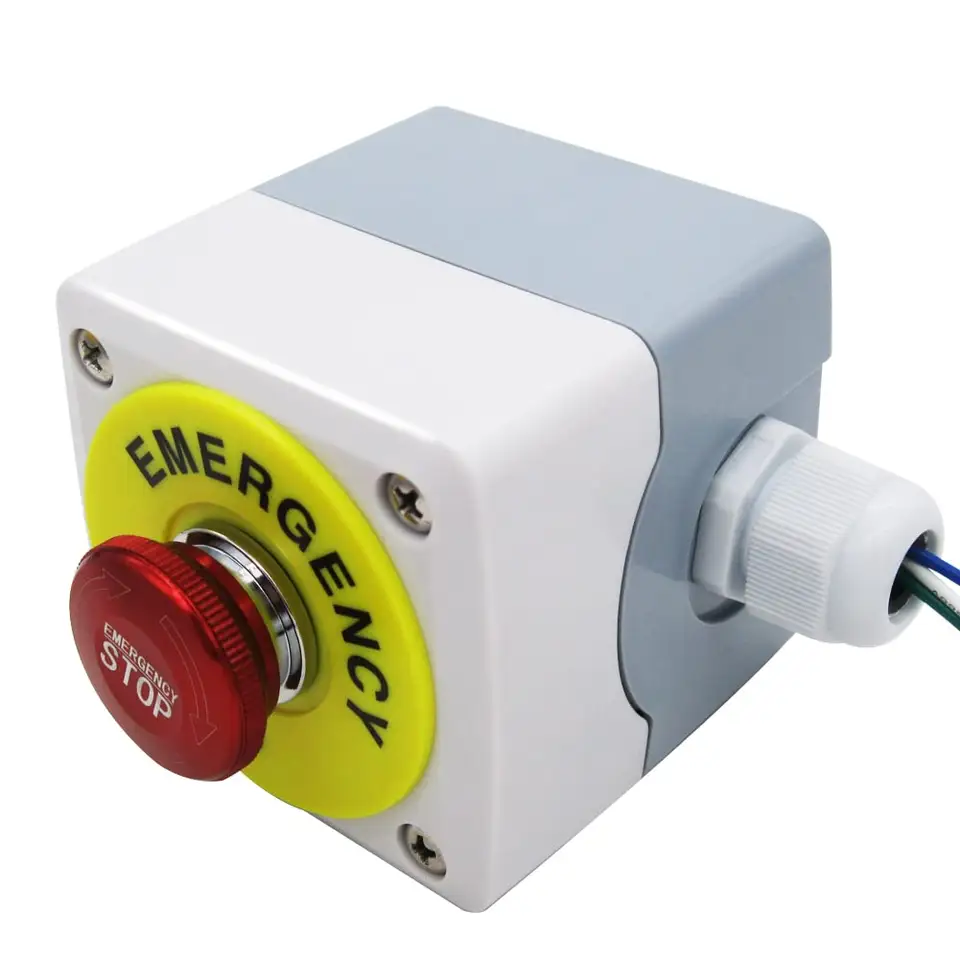

Plastic NC NO Switch
|
TYPE
|
19mm
|
|||
|
Actuator Options
|
Mushroom Head with Arrow
|
|||
|
Terminal
|
Pin
|
|||
|
Max. Switch Rating
|
5A/110VAC, 3A/12VDC
|
|||
|
Contact Resistance
|
50mΩ
|
|||
|
Insulation Resistance
|
1000mΩ
|
|||
|
Dielectric Strength
|
2000VAC
|
|||
|
Operation Temp.
|
-20°C ~ +55°C
|
|||
|
Mechanical Life
|
1,000,000cycles
|
|||
|
Electrical Life
|
>50,000cycles
|
|||
|
Contact Material
|
Silver Alloy
|
|||
|
Torque
|
5 ~ 14Nm
|
|||
|
Operation Pressure
|
approx. 5.5N
|
|||
|
Protection
|
IP65
|
|||
